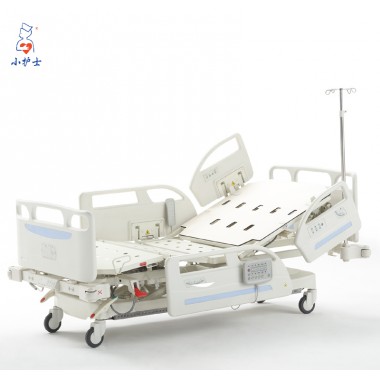

Name: Type A3 Five Function Electric ICU Bed
Technical features
Outer dimensions (Side rails up): L2240*W1040mm(±10mm)
Mattress platform: L1920*W900mm(±10mm)
Bed height: H495-735mm(±10mm)
Maximum backrest: ≥70°
Maximum knee rest: ≥25°
TR/ATR: ≥12°
Height of side rails(above mattress platform) : 380mm(±10mm)
Safe working load: 200kgs
Electric parameters
Power supply: 220V/110V, 50HZ / 60Hz
Maximum input: 1.6A,450VA
Protection against water and dust: IPX4
Equipment classification: Class I
Level of protection against injury from electrical current: Applied part type BF
Electric motor operation mode (load factor): 10%, max2min/18min
Certificates
Pukang Medical is certified according to European norms and quality system: EN ISO 9001:2008,EN ISO 13485:2003 EN ISO14001:2005 Products are manufactured according to European norms for medical technology and hospital beds EN 60601-1,EN60601-1-2 ,EN ISO 14971, 93/42/EEC,90/384/EEC EN60601-2-52:2009
Standard configuration
1.Split Side Rails: The 4pcs PP side rails provide the patient with protection against falls.
2.Removable Mattress Platform: Easy removable and easy for sterilization.
3.H/F Boards Locks: The bed board locks prevent accidental removal of the bed boards when steering or handling the bed.
4.Protective corner bumpers
5.Lifting pole or infusion stand holes
6.Mattress holders
7.Angle Indicator: The angle gauges of side rails in the head and foot direction show the angles of the backrest and the tilt of the whole bed mattress platform respectively. 8.Extension of the bed: The integrated bed extension adjusts the mattress platform length to the individual patient’s height.
9.Four 125mm castors with central locking system
10.Manual CPR: The electric CPR is equipped with damping device, which can let the back rest fall down slowly to ensure the safety of the patient when the power is off, the whole process can be single hand operation.
11.Integrated Scales system: The in-bed scales control panel located under the foot end is protected against impacts.
12.Night light:(option)
