| Model | E-3 |

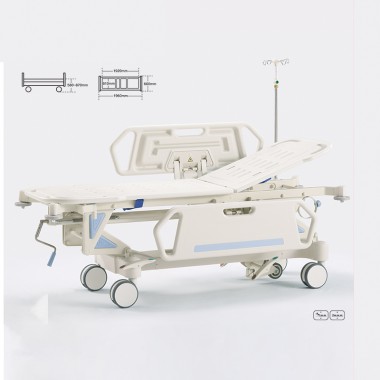

| Name | Transfer stretcher |
| Size | L1960×W660×H580~870 mm. |
| Features | 1. The main frame is made of high quality cold rolled profile steel with epoxy coating. Strong and nice in appearance. 2. The stretcher surface and side rail are made of HDPE material, which is comfortable and easy to clean. It has a backrest function. The lift angle of the backrest is adjusted by the handle which control by gas spring. The lifting angle of the back is more than60°. There are straps to protect patients. 3. The lifting of the trolleys is controlled manually by crank in range 580 to 870mm. Stainless steel crank handle with long service life. The telescopic rocker of the transmission part is made of stainless steel, steel universal joint, and the lead screw is formed by 45# steel, with over rotation protection, flexible shaking, no noise, with ABS dust cover. 4. The geometric supporting parts of the lifting mechanism are all made of 3.0mm high-quality carbon structural steel with a 160T press and drawn. It has a unique shape and stable and reliable operation. The screw for lifting has a two-way limit device that is formed by double-wire extrusion at one time, and is light in use. 5. The steel chassis is welded by a rectangular tube, and the outer cover is ABS. 6. The mobile devices are equipped with a central braking system. The casters of trolley areφ150mm middle control casters imported from Taiwan. The high-stability linkage system ensures stable and convenient braking. The material of the caster core is made of high-strength aluminum alloy material, which has high strength and corrosion resistance. The outer cover of the caster is made of polyether PU material, which is quiet, shock-absorbing, wear-resistant and corrosion-resistant solution. The rotating part adopts precision bearing set, which is flexible and stable. Braking system: All metal matching, compact structure and reliable braking. 7. It equipped with the fifth wheel device, which can help straight movement easily when pushing. Reduce the workload of nurses and labor units when transferring patients over long distances. 8. There is a bumper in each corner. 9. Equipped with IV pole and mattress.
|
